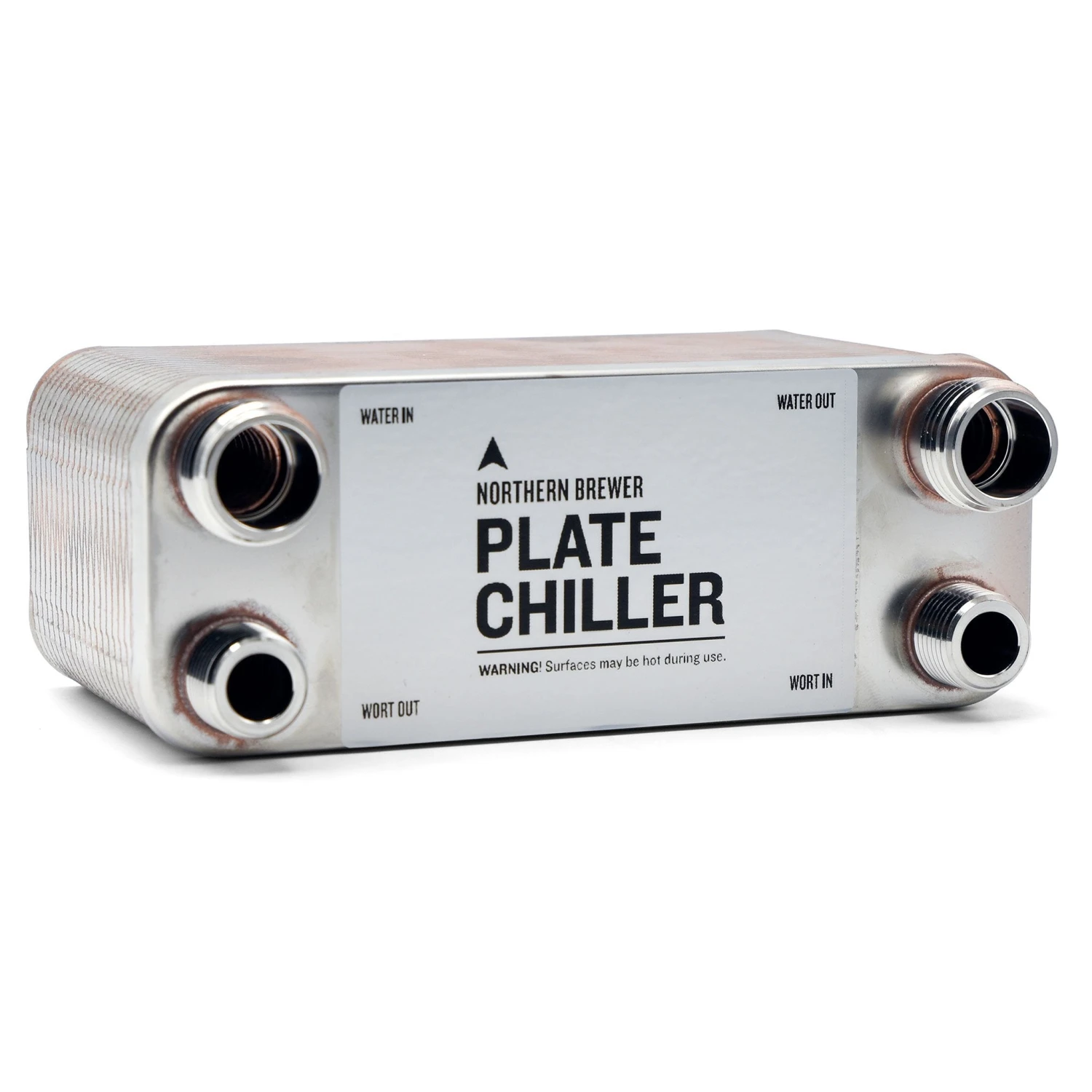

Northern Brewer Plate Chiller

This compact and economical plate chiller is very effective at rapidly reducing wort to pitching temperatures. Plate chillers are more efficient than both immersion chillers and other counterflow designs. Save water and time while chilling your wort. Reach pitching temp in record time and reduce the chance of contamination in your homebrew.

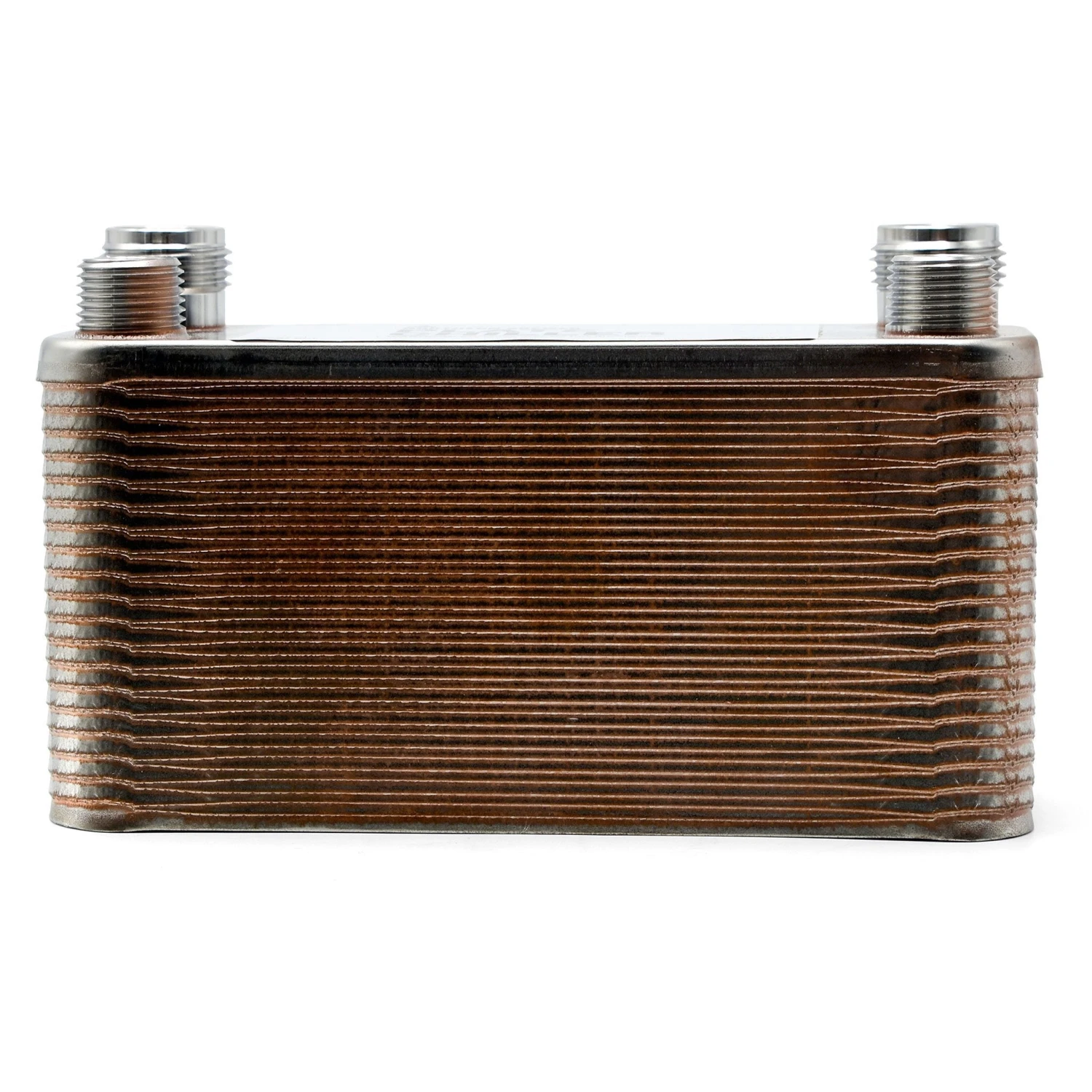

The Northern Brewer Wort Plate Chiller is a highly-efficient, compact plate-type wort chiller similar in design to the Therminator. This chiller is made of 40 plates of 304 stainless steel that have been brazed together with pure copper in an oxygen-free furnace.

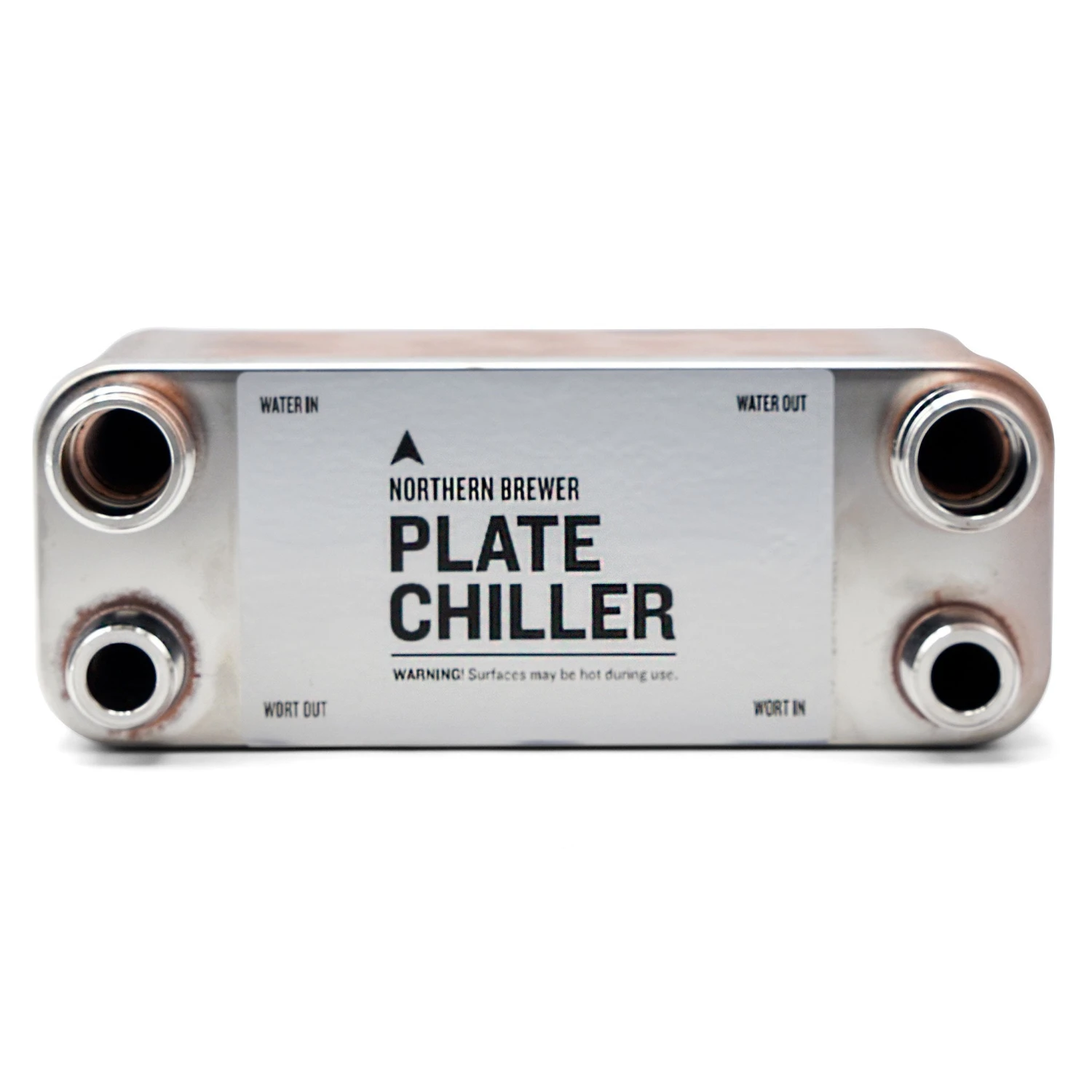

This chiller has 1/2″ NPT threaded male hookups for the wort and male Garden Hose fittings for the chilling and wastewater. Wort may be pumped or gravity fed through the chiller.

We strongly recommend purchasing the optional backflush assembly for use in cleaning this chiller.

Check out our connection packages to make setting up the chiller even easier!

Connection Kit – Pump Fed

Connection Kit – Gravity Fed

Plate Chiller Specs:

• 40 Plates.
• 1/2″ Male NPT wort in and out connection.
• Standard male garden hose fittings for water in and out connections

Plate Chiller Dimensions:

• 7″x3″x4.5″
• Weight: 5lbs
